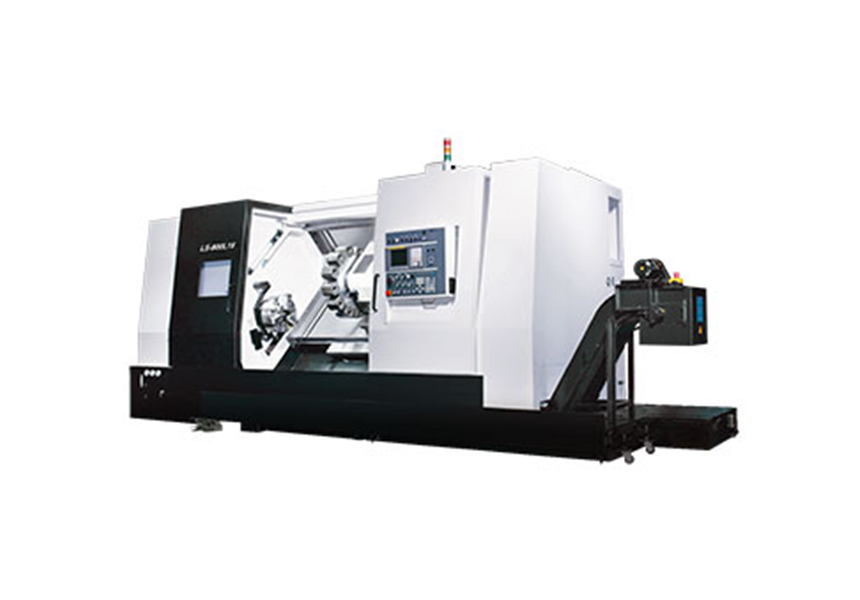

LS-800MC
LS-800MC
| LS-800MCL10 | LS-800MCL15 | LS-800MCL20 | LS-800MCL30 | |
|---|---|---|---|---|
| Max swing (mm) | 830 | 830 | 830 | 830 |
| Max turning diameter (mm) | 680 | 680 | 680 | 680 |
| Max tuning length (mm) | 937 | 1437 | 1937 | 2937 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 |
| Chuck size (inch) | 20" | 20" | 20" | 20" |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T12 | T12 | T12 | T12 |
| Milling turret (Y/N) | Y | Y | Y | Y |
| Y axis (Y/N) |
| LS-800MCL10 | LS-800MCL15 | LS-800MCL20 | LS-800MCL30 | |
|---|---|---|---|---|
| Max swing (mm) | 32.6 | 32.6 | 32.6 | 32.6 |
| Max turning diameter (mm) | 26.7 | 26.7 | 26.7 | 26.7 |
| Max tuning length (mm) | 36.8 | 56.5 | 76.1 | 115.4 |
| Bar capacity (mm) | 7.1 | 7.1 | 7.1 | 7.1 |
| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 |
| Chuck size (inch) | 20" | 20" | 20" | 20" |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T12 | T12 | T12 | T12 |
| Milling turret (Y/N) | Y | Y | Y | Y |
| Y axis (Y/N) |
| LS-800MCL10 | LS-800MCL15 | LS-800MCL20 | LS-800MCL30 | |
|---|---|---|---|---|
| Max swing (mm) | 830 | 830 | 830 | 830 |
| Max turning diameter (mm) | 680 | 680 | 680 | 680 |
| Max tuning length (mm) | 937 | 1437 | 1937 | 2937 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 |
| Chuck size (inch) | 20" | 20" | 20" | 20" |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T12 | T12 | T12 | T12 |
| Milling turret (Y/N) | Y | Y | Y | Y |
| Y axis (Y/N) |
